無錫市德潤輕工機械廠
品類 | 轉鼓 | 品牌 | DESH |
---|---|---|---|
型號 | GI&Phi |
性能:

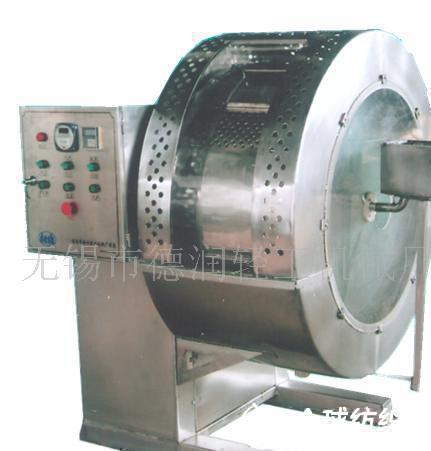

(1)整機鼓體機架采用不銹鋼制作、使用壽命長。
(2)采用熱泵循環加熱,停鼓時能加熱恒溫。
(3)無級變速,速度快慢可調(0-35轉分)。
(4)自動加溫,恒溫,溫度控制正確(0-70℃±1℃
(5)全新快啟式鼓門,操作方便。
(6)可卸式鋼化玻璃觀察門,安裝方便,鼓內清洗容易
(7)可在極小液比和無液情況下正常工作。
(8)加熱液和鼓內液體分離,清洗徹底,無上次試驗時留下的殘液和廢渣。
(9)電加管使用壽命長,電機使用壽命長。
(10)定時正反轉動,調節時間0-30分,也可單方向轉動。
(11)設有夜間工作系統,在皮液過夜時可控制溫度,定時轉動、使鼓體內的皮毛及時翻動,染色更均勻,防止皮張長時間應停鼓而壓出壓紋和染色不均勻及低溫情況下過夜時測出和數據不正等情況.
properties:
(1) the drum of frame made by stainless steel, long service life.
(2) using heat pump cycle heating, stop when heating temperature can drum.
(3) stepless speed, speed, speed adjustable (0-25 turn points).
(4) automatic constant temperature, heating, temperature control right (0℃±1-70℃
(5) new fast rev. type drum, easy operation. door
(6) can discharge type toughened glass door window, convenient installation, clean easily inside the drum
(7) can be in small liquid ratio and no liquid is working correctly.
(8) heating fluid and inside the drum liquid separation, cleaning thoroughly, and no time left at the test residual liquid and waste residue.
(9) electric and tube service life is long, motor long service life.
(10) of positive and negative rotation, adjust timing time 0 to 30 points, also can a single direction.
(11) a night work system
主要技術參數
型號model | gi600 | gi801 | gi1001 | gi1201 | gi1400 | gi1500 | gi1600 |
規格size(mm) | φ600*300 | φ800*400 | φ1000*500 | φ1200*500 | φ1400*600 | φ1500*600 | φ1600*600 |
裝皮量(kg) max loading capacity | 10 | 20 | 40 | 60 | 80 | 90 | 90 |
工作轉速speed | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
控溫范圍control temperature range
| 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ |
電機功率(kw) electric heating power
| 0.75 | 1.1 | 1.5 | 2.2 | 4 | 4 | 4 |
重量weight | 320 | 520 | 550 | 670 | 700 | 720 | 750 |
