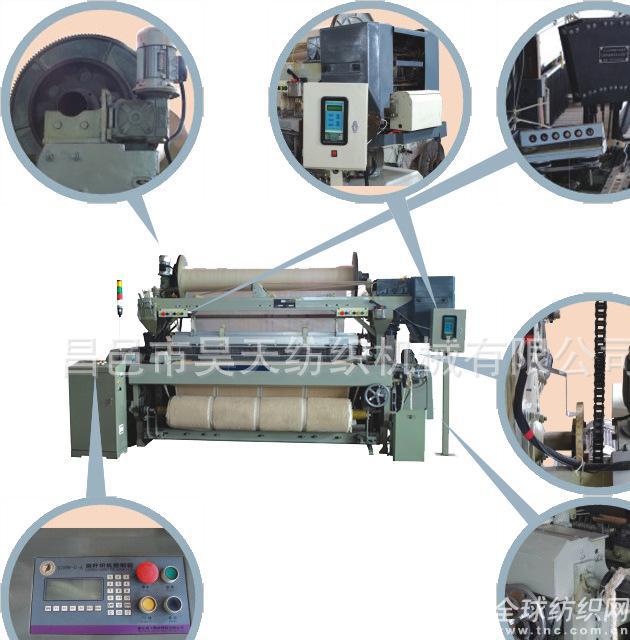

ga798撓性劍桿織機以棉纖維、天然纖維、人造纖維以及裝飾絲（比如棉、聚酯、蠶絲、羊毛、丙烯酸、人造絲、尼龍和花式紗線）等為原料，主要用于織造20-800克/sqm輕重不一的素緞面料，有裝飾布，紗窗料、花布、亞麻布、棉布、化纖布，西裝及襯衫面料等。另外，我們實現了變緯密織造，緯密可控范圍5~46緯/cm。

運行穩定，維修保養簡易，低噪音，外觀優雅，人性化的控制和操作系統，優質電機反應迅速，工作持久，能耗低，良好的綜合性能確保了系統安全穩定。

主要技術參數
1.筘幅寬度
150,180, 200, 230, 280, 330(cm).
2.轉 速
設計速度160~250rpm.
3. 入 緯 率
每分鐘160-180米通過左右劍帶和劍頭
4. 經軸直徑
標準600mm.
5. 卷布軸直徑
300mm，可匹配大卷取機構
6.儲 緯 器
fdp電子儲緯
7.驅動控制
額定主電機功率0.8~1.3kw，3相電，380v，50hz，電磁離合器制動。
8. 打緯機構
曲軸引緯打緯
9. 潤滑系統
油泵，多臂自動加油。
10. 電路設計
采用標準模塊化設計，led發光管顯示工作狀態，易檢修，使用成本低。
11. 選緯機構
機械多臂牽引4-6色選緯機構。
12. 織造范圍
細紗：500tex (1.2ne)~5tex (120ne)；長絲紗線：10dte(9td )~1650dte(1500td).
13. 開口方式
8-12片綜框，機械多臂*多20軸自動開口，可匹配大提花機。
14. 送經機構
儲緯器連桿聯動控制半積極送經系統，反應靈敏，張力穩定。
15. 卷取機構
連續無間隙卷曲，可設定每一緯緯密，且支持同步變緯密織造。
16. 布邊形成
機械邊剪，紗羅布邊；伸幅裝置：單排銅刺環輥式。
17. 停車裝置
停經：單獨電動停經；停緯：高靈敏度壓電探測器自動停止。4色多功能指示燈顯示停車狀態。
18. 電子控制
微電腦多功能自動控制系統附帶存儲卡，按鈕操作，方便簡單，即時調整。
19.尺寸/重量
450*250*260cm3, 1.8~2.0 mts.

ga798 flexible rapier loom with cotton fiber, natural fiber, synthetic fiber and decorative silk (such as cotton, polyester, silk, wool, acrylic acid, rayon, nylon and fancy yarn) as raw materials, mainly for weaving 20-800 grams /sqm severity of satin fabric, decorative cloth, screen window material, cloth, linen, cotton cloth, chemical fiber cloth suit and shirt fabric and so on. in addition, we have realized the change of weft density, weft density and controllable range 5~46 weft /cm.

stable operation, easy maintenance, low noise, elegant appearance, user-friendly control and operation system, high-quality motor response quickly, work for a long time, low energy consumption, good comprehensive performance to ensure that the security and stability of the system.
main technical parameters
1 reed width
150180, 200, 230, 280, 330 (cm).
2 rpm
design speed 160~250rpm.
3 weft insertion rate
160-180 meters per minute through the left and right side of the sword and the sword
4 beam diameter
standard 600mm.
5 rolling shaft diameter
300mm, can take large matching mechanism
6 weft storage device
fdp electronic weft storage
7 drive control
rated main motor power 0.8~1.3kw, 3 phase power, 380v, 50hz, electromagnetic clutch brake.
8 beat up mechanism
crankshaft weft insertion
9 lubrication system
oil pump, multi arm automatic refueling.
10 circuit design
using standard modular design, led led display working status, easy maintenance, the use of low cost.
11 weft selection mechanism
mechanical multi arm traction 4-6 color weft selecting mechanism.
12 weaving range
spinning: 500tex (1.2ne) ~5tex (120ne); filament yarn: 10dte (9td) ~1650dte (1500td).
13 opening method
8-12 piece of integrated frame, mechanical multi arm up to 20 axes automatic opening, can match the big jacquard machine.
14 warp feeding mechanism
weft rod linkage control of semi active warp feeding system, sensitive reaction and stable tension.
15 coiling mechanism
continuous no gap curl, can be set for each weft density, and support for synchronous change weft density weaving.
16 selvage forming
mechanical cutting edge, leno selvedge; tentering device: single row copper thorn ring roller.
17 parking device
menopause: single electric menopause; weft stopping: high sensitivity of piezoelectric detector automatic stop. 4 color multi function indicator display parking status.
18 electronic control
microcomputer multifunction automatic control system with memory card, button operation, convenient and simple, real-time adjustment.
19 size / weight
1.8~2.0, mts. 450*250*260cm3
